Knens is the leading manufacturer of precision fabrics from monofilaments for the screen printing and filtration markets. Knens products are used in a wide variety of industries, including electronics, graphics and automotive applications. With its profound under-standing of the applications, Knens helps its customers to achieve optimum results in their industrial processes.
Use special polyester thread below 40um

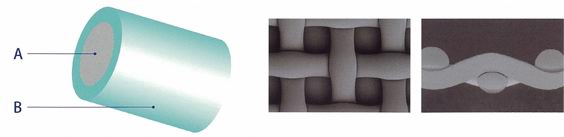

| A（Coro） |
High strength and low elongation polyester |
| B（Sheath） |
High adhesive performance for photosentizing agent polyeter |

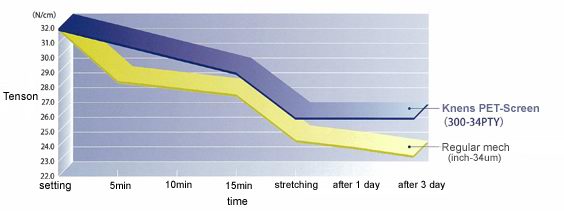

High dimentional stability
| Setting tension: |
32N |
| Mesh bonding machine: |
Oil Press |
| Tension gauge: |
TETKOmat |
| Frame size |
Aluminium Square Pipe frame Thickness 3mm |

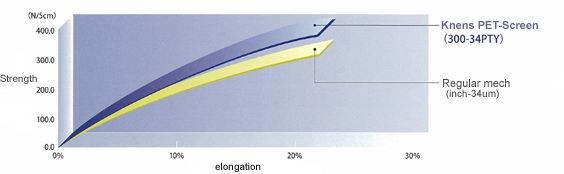

High tensile strength and low elongation
| Testing method |
JIS L1096（Strip method） |
| Strip width |
5cm |
| Grip length |
20cm |
| Stretching speed |
10cm/min |

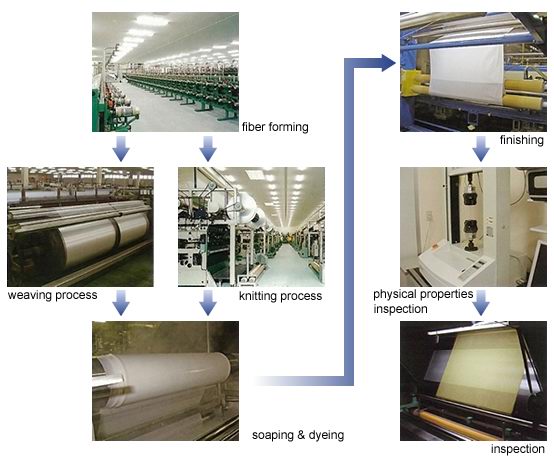

Picture of each process
